Description:

100% Brand new and Good Quality.

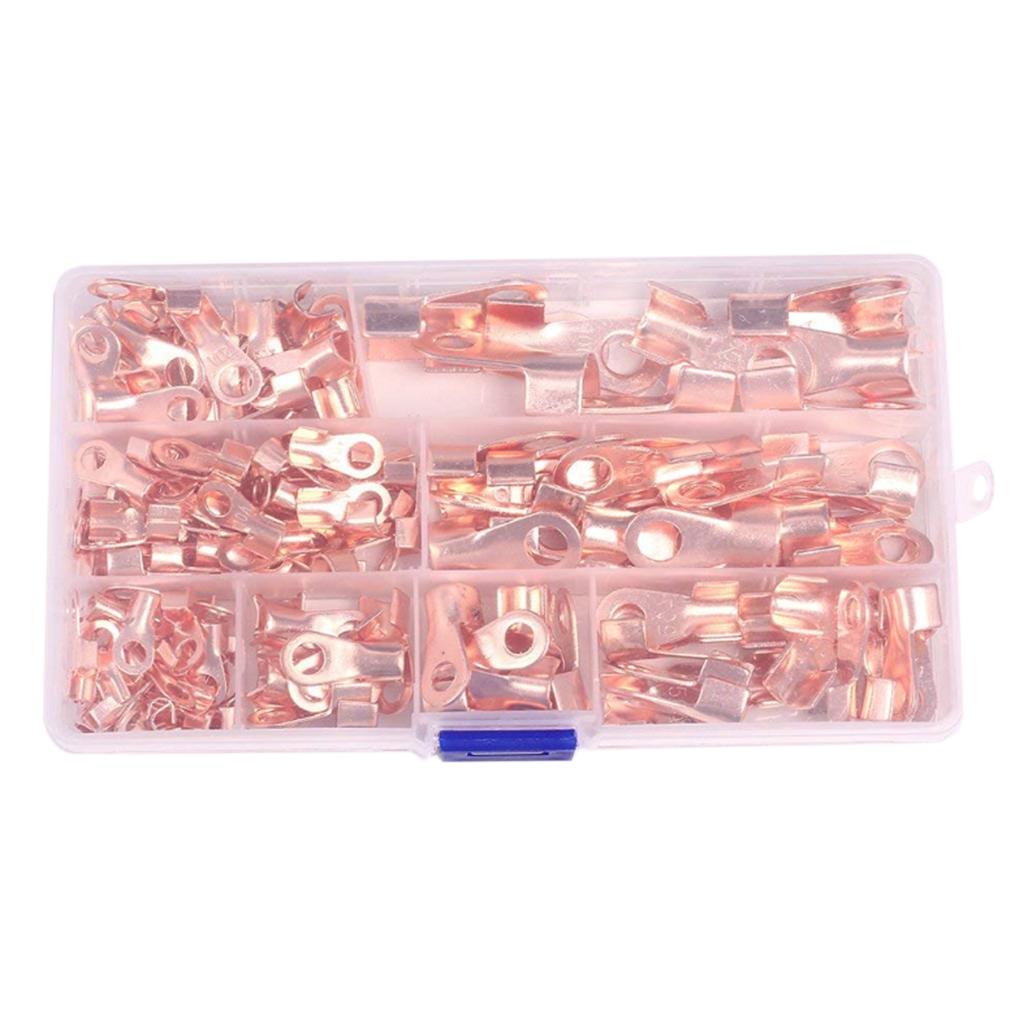

Open barrel copper lug terimal blocks assorted kit including OT 5A-100A 8 type 185 pieces in total.(5A 10A 20A 30A 40A 50A 60A 100A)

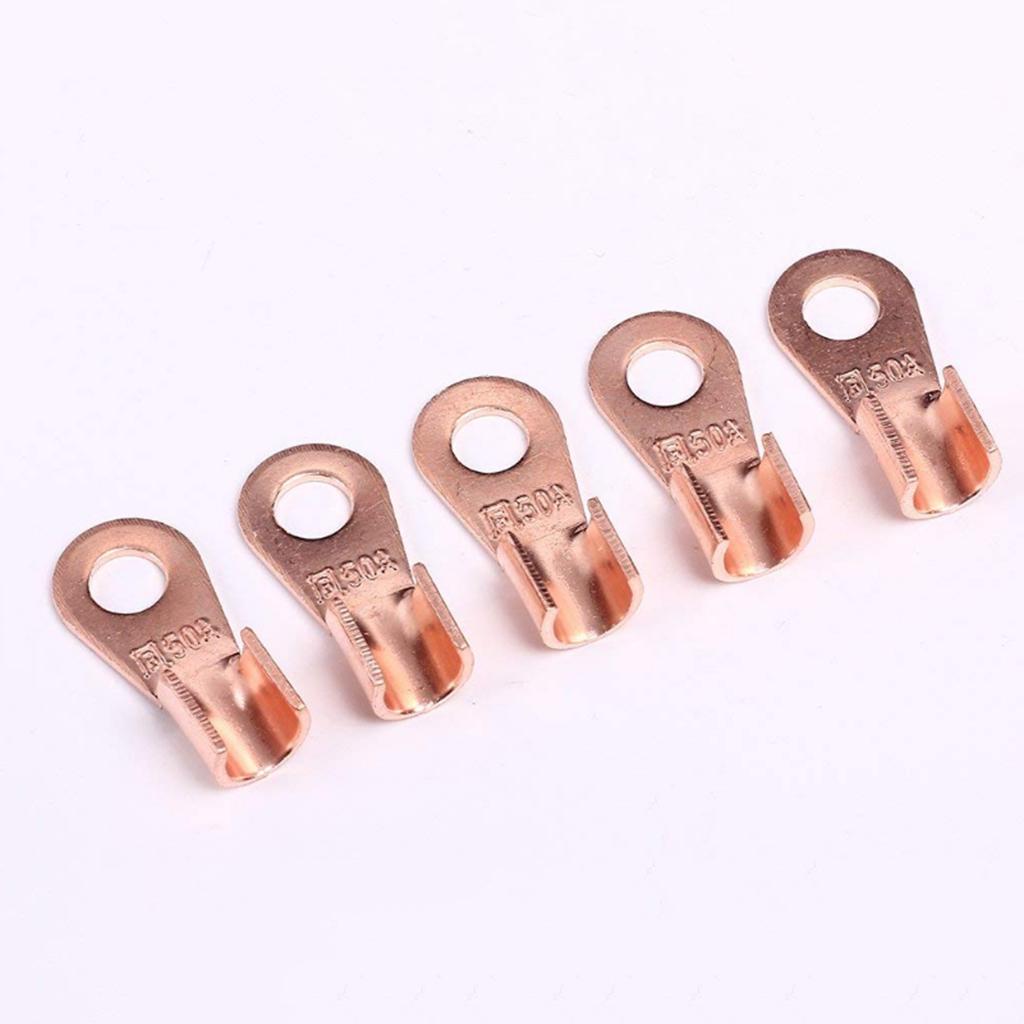

Made from pure copper with good conductivity, solderless wire crimp connection widely used in the electrical wire connecting.
Universal use in battery and welding cables, boat wiring and rolling motor, ATV, RV, Golf Cart, 12V solar panel, invert cable, back-up power and battery bank etc.
PVC box packed enable the user easy to store and carry these terminals.

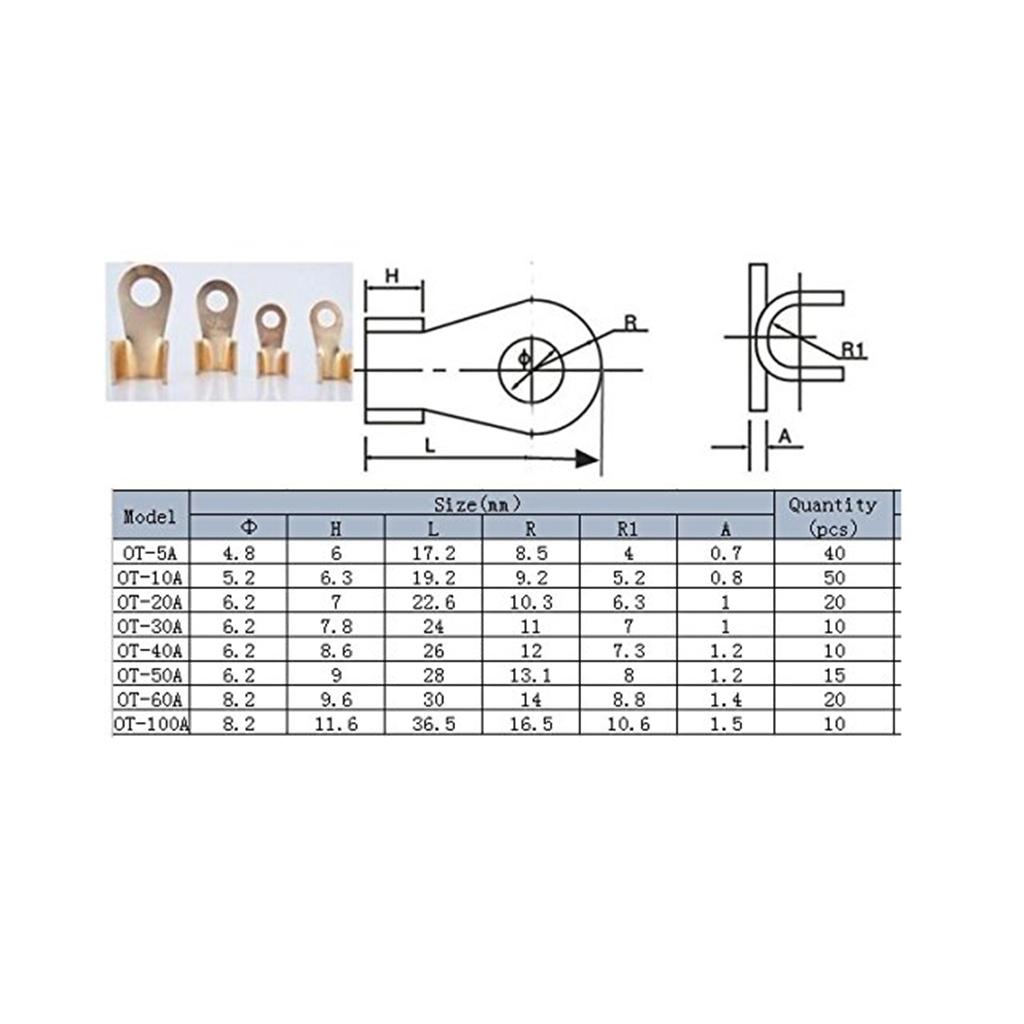

Specification:

OT-5A Specifications:
Overall Length: 17.2mm
Tail Length: 6mm
Ring Diameter: 4.8mm(Inner), 8.5mm(outer)
Wire Section: 0.5-1.5mm2(AWG 22-16)
Quantity: 40pcs
OT-10A Specifications:
Overall Length: 19.2mm
Tail Length: 6.3mm
Ring Diameter: 5.2mm(Inner), 9.2mm(outer)
Wire Section: 1.5-4mm2(AWG 16-12)
Quantity: 50pcs
OT-20A Specifications:
Overall Length: 22.6mm
Tail Length: 7mm
Ring Diameter: 6.2mm(Inner), 10.3mm(outer)
Wire Section: 1.5-5mm2(AWG 16-8)
Quantity: 30pcs
OT-30A Specifications:
Overall Length: 24mm
Tail Length: 7.8mm
Ring Diameter: 6.2mm(Inner), 11mm(outer)
Wire Section: 2.5-6mm2(AWG 14-10)
Quantity: 10pcs
OT-40A Specifications:
Overall Length: 26mm
Tail Length: 8.6mm
Ring Diameter: 6.2mm(Inner), 12mm(outer)
Wire Section: 4-10mm2(AWG 10-8)
Quantity: 10pcs
OT-50A Specifications:
Overall Length: 28mm
Tail Length: 9mm
Ring Diameter: 6.2mm(Inner), 13.1mm(outer)
Wire Section: 4-10mm2(AWG 10-8)
Quantity: 15pcs
OT-60A Specifications:
Overall Length: 30mm
Tail Length: 9.6mm
Ring Diameter: 8.2mm(Inner), 14mm(outer)
Wire Section: 4-16mm2(AWG 10-5)
Quantity: 20pcs
OT-100A Specifications:
Overall Length: 36.5mm
Tail Length: 11.6mm
Ring Diameter: 8.2mm(Inner), 16.6mm(outer)
Wire Section: 10-25mm2
Quantity: 10pcs

Package Includes:

185Pcs Copper Ring Lug Terminals
