Description:

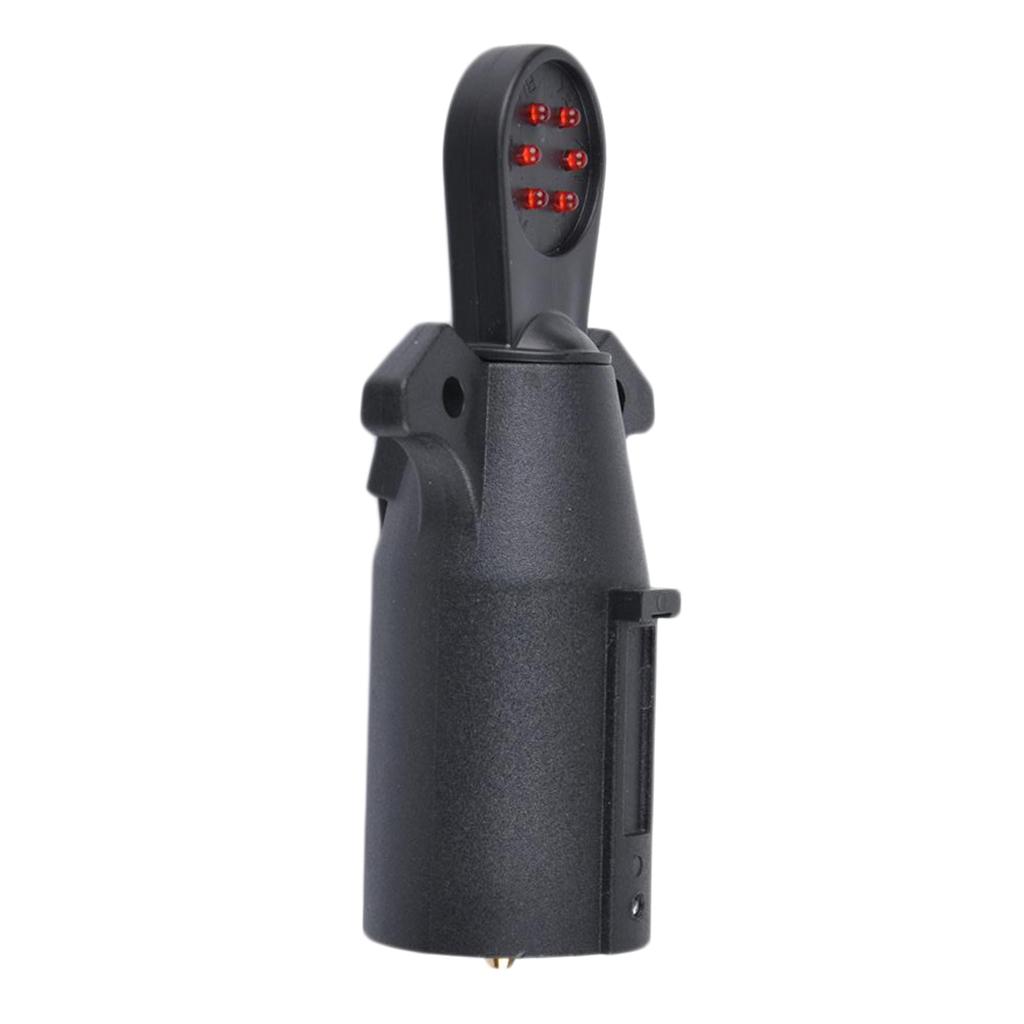

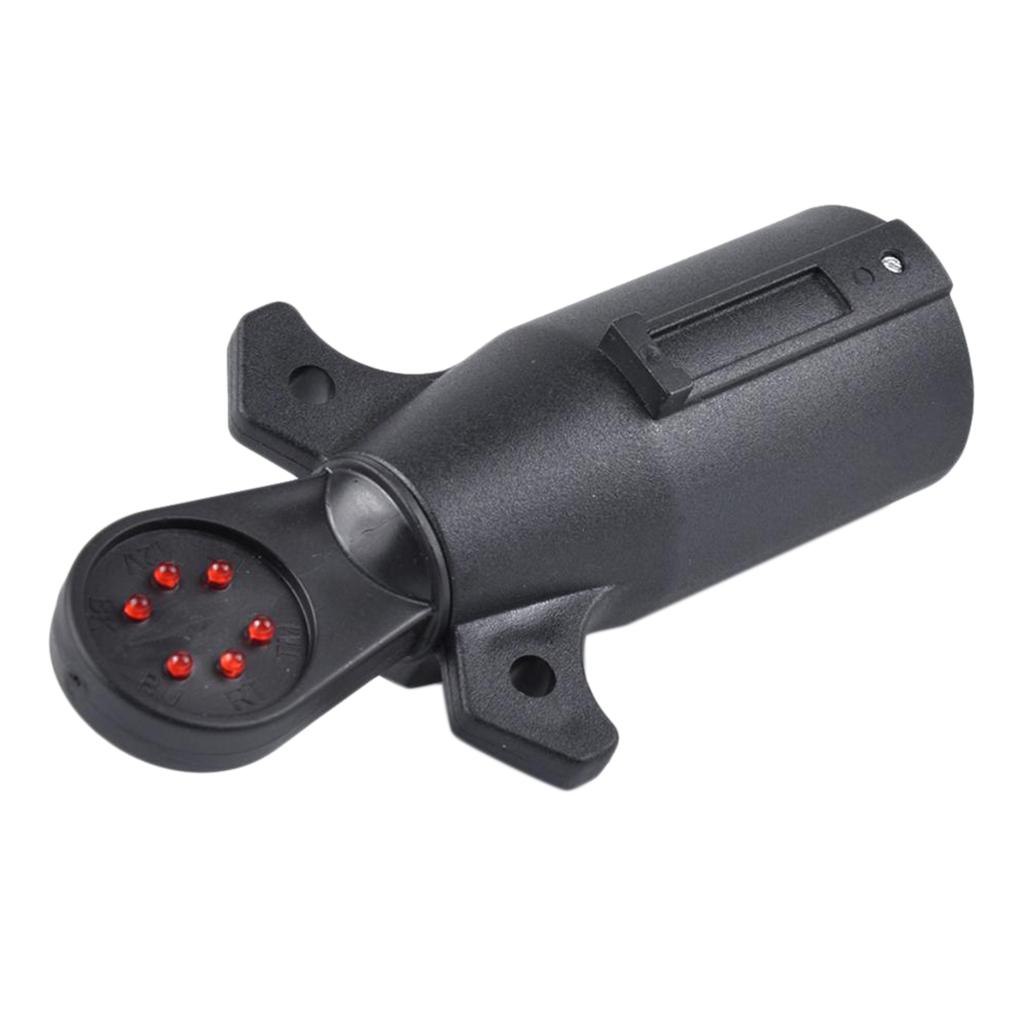

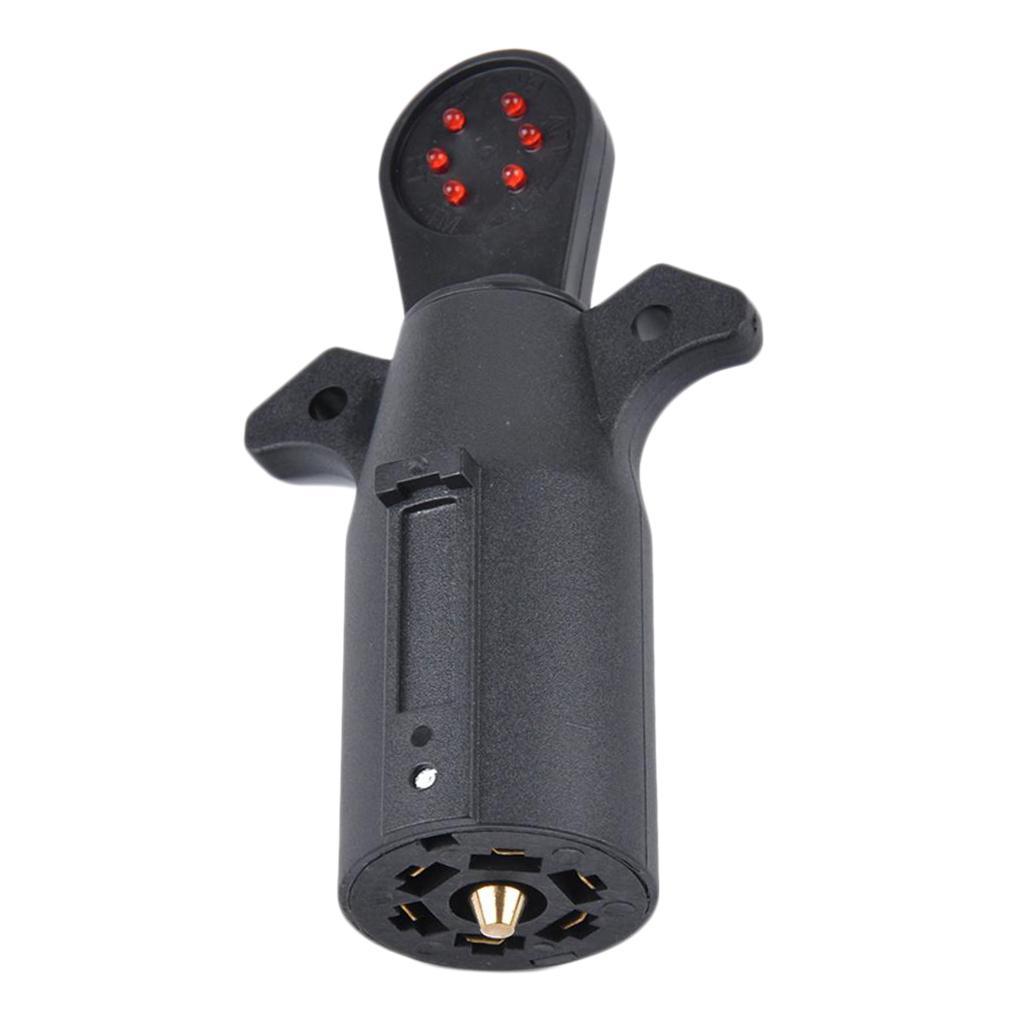

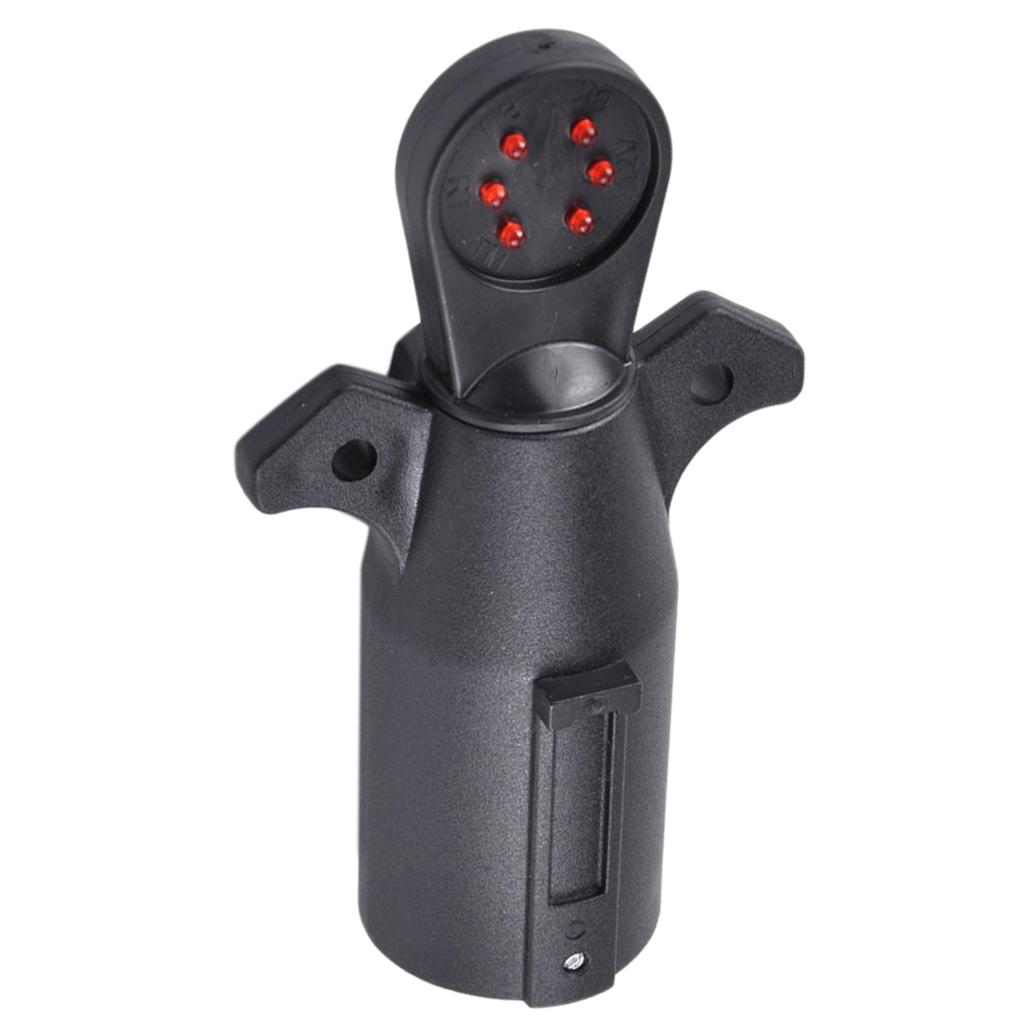

High quali 7-Way Blade Circuit Tester

Compatible with standard 7-way blade trailer sockets

LED indicator for circuit continuity tests

Plug-n-Play easy installation

Compact and small – easy to put away.

Specification:

Material:PVC

Size:13.5×7.5×4.8cm/5.3×2.95×1.8939;39;

Volt:12V

Pin:7

Package Includes:

1 Piece 7-Way Blade Circuit Tester

1 Piece Instruction

Note:

Plug the tester into vehicle39;s mating plug.

Perform a function test for each circuit.

TM: Taillights(Turn on running lights.Tester should stay lit at a constant)

LT: Left turn/Brake(Turn on left turn signal.Tester should flash according to turn signal and stay lit when brakes are applied)

RT:Right turn/brake (Turn on right turn signal.Tester should flash according to turn signal and stay lit when brakes are applied)

Back up:(Shift vehicle into reverse.Tester should stay lit at a constant)

12V:Auxiliary(12V+)(Tester should stay lit at a constant)

BK:Electric Brakes(Apply brake or engage manual override of brake controller.Tester should stay lit at a constant)
